Tootepildid on illustratiivsed
PNI maja WiFi650 videovalve komplekt - 4 kaamerat Full HD Wi-Fi P2P ja 12-tollise LCD-ekraaniga
Toote andmed
| Üldandmed | |
|---|---|
| Tootja | PNI |
| Tootekood | 292318014 |
| EAN | 05949066516368 |
| Tootja kood | PNI-HSWIFI650 |
Toote kirjeldus
Video presentation |
|
Video surveillance kit PNI House WiFi650 4 Full HD Wi Fi P2P and 12 inch LCD monitor |
Methods of access and controlThe PNI House WiFi650 video surveillance kit can be controlled from mobile devices via Android and iOS compatible XMEye , or through General CMS (Windows) / VMS (MAC) software . The installation file of the CMS can be found on the CD included in the package or you can download it from our site from the product section of the Download section. With dedicated applications, you can watch real-time images taken by cameras and add complete access to the system that allows: setting, viewing records, downloading recordings, etc.
| |
Wireless communicationYou can connect the camera to the internet via a wireless network. Also connect the camera to the NVR through a wireless connection. The maximum Wi-Fi transmission distance is 100 m (open field). |  |
| NVR 4-channel 1080PYou can connect to this system 4 IP 1080P cameras or 8 IP 960P cameras. For recording, you need to install a 2.5-inch hard disk of up to 8TB in the dedicated slot. The hard drive is not included in this kit. |

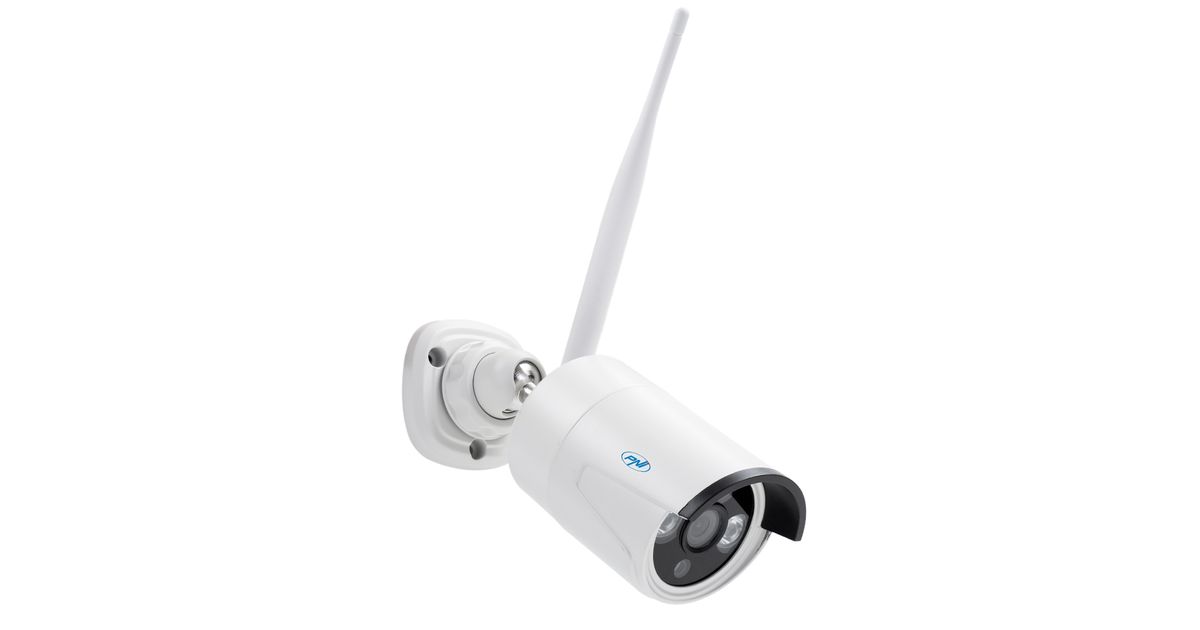

Night visibilityThe rooms are equipped with 3 IR LEDs that allow visibility even at night up to a distance of 30 m. |
|
| Monitor 12 "includedThe kit includes a 12-inch LCD monitor with a 2.5-inch hard disk drive slot and ports such as: VGA and HDMI for connecting another external monitor, USB for mouse and stick connection in case of firmware update and RJ45 for connecting the system to the Internet. |
| Product Identification | |
| Manufacturer | NIP |
| Product code | NIP-HSWIFI450 |
| Room color | White |
| DVR / NVR features | |
| Number of channels | 4 digital |
| processor | Hi3536D |
| Video Inputs | 4 x 1080P (25FPS) |
| Video exits | 1 x VGA, 1 x HDMI |
| Video output resolution | 1920 x 1080 px |
| Playback resolution | 1080P Full HD |
| Recording resolution | 1080p Full HD (4 channels) |
| Record resolution and number of channels, variants | 4 Channels 1080P 8 Channels 960P |
| Display mode | 1 channel, 4 channels |
| Audio compression | G711 |
| Video compression | H.265 + / H.265 / H.264 + / H.264 |
| Data storage | maximum 1 x 8 TB HDD 2.5 "(not included) |
| Network Interface | RJ45 10/100 Mbps |
| Power supply | 12V / 2A |
| Operating temperature | -10 ° C to + 40 ° C |
| dimensions | 294 x 188 x 45 mm |
| wifi | Yes, just to connect the cameras |
| Wireless communication distance | Up to 100m in open space |
| USB ports | 2 x USB2.0 |
| Screen | 12 inch |
| Dedicated application | XMEye |
| Motion detection | Yes |
| HDMI Output | Yes, 1.3 |
| Network | Yes, RJ45 LAN Port |
| Ways to register | Manual, programmed, alarm |
| Camera features | |
| Image sensor | 1 / 2.9 "2MP CMOS |
| Video system | PAL / NTSC |
| pixels | 1920 × 1080 |
| Resolution | 1080P |
| Video Output | Digital by RJ45 |
| Minimum illumination | 0 Lux (IR on) |
| Degree of protection | IP66, metal housing |
| IR wavelength | 850 nm |
| IR illumination distance | Up to 30 m |
| dimensions | 60 x 65 x 180 mm |
| Number of IR LEDs | 3 |
| feeding | 12V / 1A |
| lenses | 3.6 mm |
| wifi | Yes |
| Operating temperature | -26 ° C ~ + 60 ° C |
| Dedicated application | XMEye |
| The package contains | |
| DVR / NVR | Yes |
| Surveillance cameras | 4 interior / exterior rooms |
| NVR / DVR power supply | 230V -> 12V 2A |
| CD Software | Yes |
| User manual | Yes |
| USB mouse | Yes |
| Camera blender | 230V -> 12V 1A |
| Monitor features | |
| display | 12 inch |
| Display type | TFT-LCD |
| Display size | 256.32 x 114.18 mm |
| Touch screen | Not |
