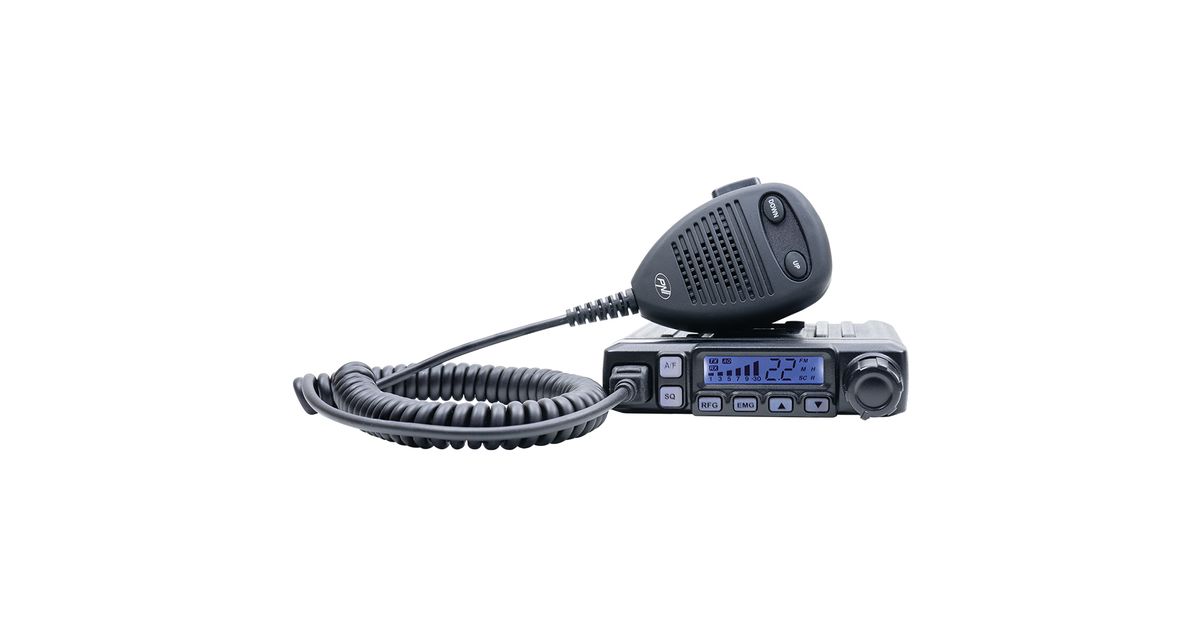

Raadiojaam CB PNI Escort HP 7120 ASQ, raadiosagedusvõimeline, 4W, 12V ja CB PNI Extra 48 antenn koos magnetiga, 45cm, SWR 1.0
Toote andmed
| Üldandmed | |
|---|---|
| Tootja | PNI |
| Tootekood | 292318156 |
| EAN | 05949066517730 |
| Tootja kood | PNI-7120EX48 |
Toote kirjeldus
Video presentation |
|
The CB PNI Escort HP 7120 stationCB PNI Extra 48 antenna, with magnetic base, 45 cm, 26-30MHz, 150W, SWR 1.0, fiberglass |
| Product identification | |
| Product code | PNI-7120EX48 |
| General features of the radio station | |
| Model | Furniture |
| Broadband type | AM-FM |
| Frequency | 26.965-27.405 MHz |
| channels | 40 AM / FM |
| Microphone type | RJ45 plug |
| Power speaker audio | 1 W |
| Sensitivity (20dB SINAD) | greater than 1 µV (AM / FM) |
| Emission power | 4 W |
| Modulation | 80 - 90% |
| Mounting 1 DIN | Yes |
| feeding | 12 V |
| Consumption | 2A maximum |
| Dimensions / Weight | 110 X 120 X 28/385 g |
| Special features of the radio station | |
| Adjustable ASQ | Yes, 9 levels |
| SQ - Squelch | Yes, 28 levels |
| Scan channels | Yes |
| RF Gain | Yes, 9 levels |
| Lock the keyboard | Yes |
| Multicolored screen | Yes |
| Emergency channel button 9/19 | Yes |
| Operating temperature | -26 C - +60 C |
| Features radio antenna | |
| Working frequency | 26 - 28 Mhz |
| Maximum applied power | 150 W |
| Minimum SWR in the center of the band | 1.0 |
| Antenna length | 45 cm |
| Working distance | 10 km |
| impedance | 50 Ohms |
| Material | Fiber glass |
| Tip connector | PL259 |
| Magnetic base included | Yes |
| Magnetic base diameter | 103 x 66 x 40 mm |
| Cable length | 4m |
| The package contains | |
| CB radio station | Yes |
| CB radio antenna | Yes |
| Magnetic base | Yes |
| PL259 plug | Yes |
| RG174 cable | Yes, 4 m |
| Lighter plug | Yes |
| Microphone holder | Yes |
| Station support | Yes |
