Raadiokomplekt CB PNI Escort HP 62 ja PNI Extra 48 antenn koos magnetiga, ASQ, RF võimendus
Toote andmed
| Üldandmed | |
|---|---|
| Tootja | PNI |
| Tootekood | 292317856 |
| EAN | 05949066515439 |
| Tootja kood | PNI-HP62-48 |
Toote kirjeldus
| Multifunctional illuminated displayThe illuminated display shows the current work mode of the station: the active functions (EMG, LOCK, SC, DW), the frequency band and the selected channel number, as well as the signal strength received and the transmitted signal. |
Portable, small sizeLike a walkie-talkie, CB PNI Escort HP 62 is extremely affordable and convenient to use because of its small size, only 73 x 35 x 92 mm - without the power adapter. Thus, you can place the station in the armrest or in the restricted spaces on board any car. |
|
| Multiple functionsDespite its small size, the PN 62 HP Escort is equipped with most of the functions required by a CB station, thus satisfying the needs of any user. Functions such as RF Gain (9 levels), SQ (28 levels), Scan, Squelch Auto (5 levels), Dual Watch or Last channel recall make the station easy to adapt to different communication needs. |
Connectivity: BNC connector, 2 pin connector and PL259 socketCB PNI Escort Station HP 62 has a dual use: in the car as a mobile station along with the body mounted antenna and outside as a portable station by installing a BNC antenna and batteries (optional accessories). The microphone and loudspeaker connections allow you to connect a 2-pin headset with which we can communicate in handsfree mode. |
|

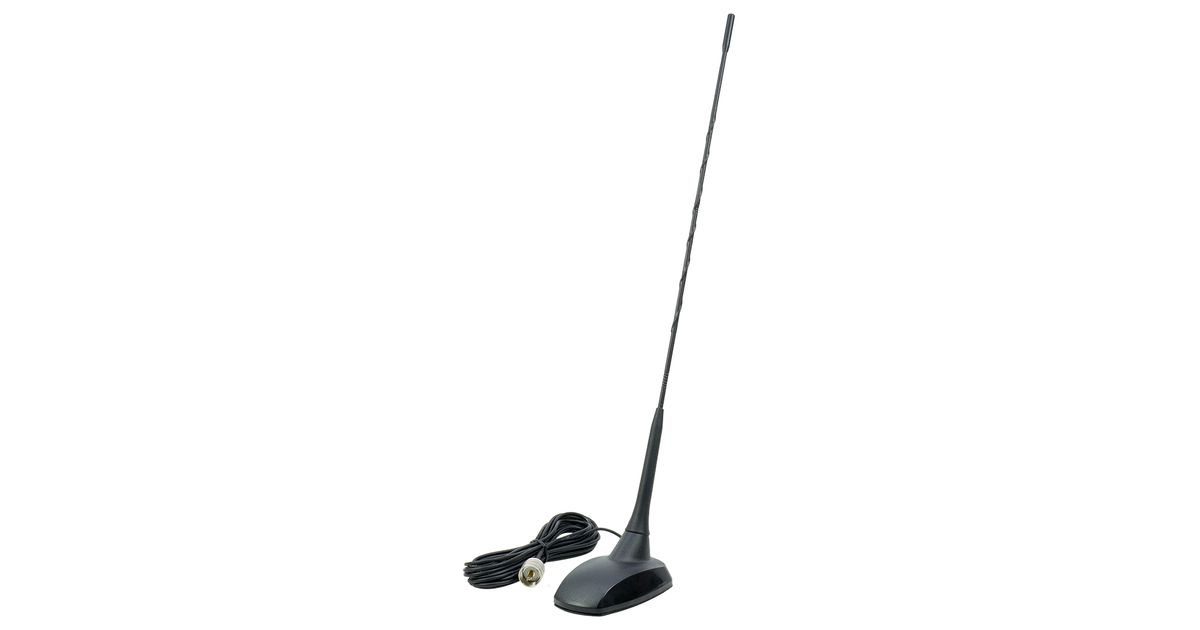

| CB Antenna, discreet and efficientThe PNI Extra 48 antenna is among the smallest CB antennas (only 45 cm high) and can be mounted on both cars and vans or minibuses. Its small size makes it almost unassembled, easily confusing with the radio antenna. The average reception distance is 10 km. |
Anti-noise designThe CB PNI Extra 48 antenna has a special anti-noise design that allows the air to slide around the spoke, eliminating the wind noise that could disrupt communication. |
|
Video presentation |
|
Kit CB transceiver PNI HP Escort 62 and PNI Extra 48 antenna with magnetic base, ASQ and RF gain |
| Product Identification | |
| Product code | NIP-HP62-48 |
| General Radio Station Features | |
| Frequency | 26.965-27.405 MHz |
| Broadcasting type | AM-FM |
| feeding | 12 V |
| Sensitivity (10dB) | 0.5uV (AM) 0.25uV (FM) |
| Audio speaker power | 0.5W |
| Current absorbed | 900 mA |
| Model | portable |
| Dimensions (L x H x D / Weight) | 73 x 35 x 92 mm (without power adapter) / 332 g (included adapter) |
| Special features Radio station | |
| ASQ - Squelch automaton | Yes, 5 levels |
| RF Gain | Yes, 9 levels |
| Mic Gain | Not specified |
| Emergency channel button 9/19 | Yes |
| Roger Beep | Not specified |
| CRL - the last selected channel | Yes |
| Color screen | Yes |
| SQ - Squelch | Yes, 28 levels |
| General Radio Antenna Features | |
| Frequency of work | 26 - 28 Mhz |
| Maximum power applied | 150 W |
| Minimum SWR at the center of the band | less than 1.2: 1 |
| Length | 45 cm (magnetic base included) Spike length: 44 cm |
| impedance | 50 Ohm |
| Material | Fiber glass |
| Connector type | PL259 |
| Cable length (m) | 4 m |
| Weight | 193 g |
| Magnetic base | 103 x 66 x 40 mm |
| The package contains | |
| Radio station antenna | Yes |
| Magnetic base | Yes |
| Radio station microphone | Yes |
| Microphone clip holder | Not |
| Support station mount | Not |
| Wired remote control | Not |
| External handsfree microphone | Not |
| Charger / support for 8 rechargeable batteries | Not |
| BNC antenna 19 cm | Not |
| Radio station cover | Not |
| Support for 6 rechargeable batteries | Not |
