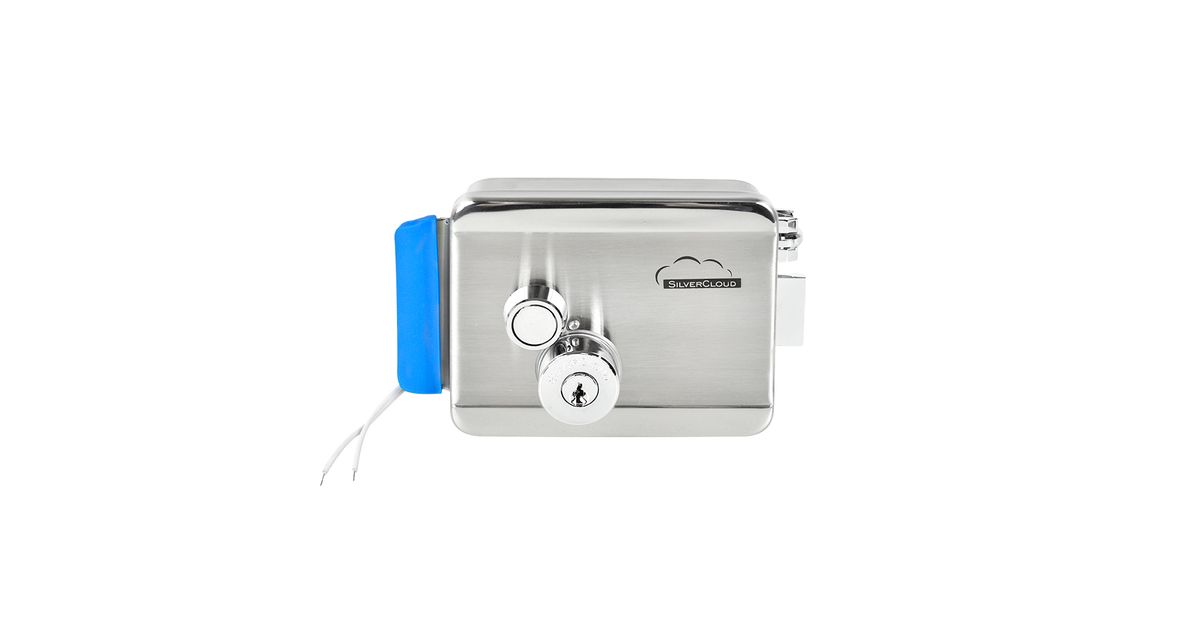

SilverCloud YE910 elektromagnetiline yala, 12 V, roostevabast terasest, kahekordse rummu ja nupuga, Fail Secure NO, ühilduv juurdepääsu kontrollsüsteemidega
Toote andmed
| Üldandmed | |
|---|---|
| Tootja | SilverCloud |
| Tootekood | 292317112 |
| EAN | 05949066501821 |
| Tootja kood | PNI-SCYE910 |
Toote kirjeldus
Fail-secure drive, NO - Normal Open | |
In this configuration, the lock opens at 12V 1A 0.5 seconds electrical impulse provided by a NO circuit (and closes only after the door or gate has been opened and closed) or manually (the mechanical components ensure the opening from the inside even in the case of feathers. current). |
|
Universal opening | |
| The electromagnetic yala applicable SilverCloud YE910 can be mounted on doors with opening on the right or left, inwards or outwards. The recommended door thickness is between 35 and 50 mm. |
Compatible with intercom or access control systems | |
The SilverCloud YE910 electromagnetic Yala can be integrated into an access control or intercom system. The Unlock button on the internal unit of the video intercom in your home can activate the unlocking of the hall, thus allowing visitors access inside. |
|
Stainless steel | |
| Guaranteed for more than 200,000 openings, the YE910 electromagnetic yoke is made of durable materials: stainless steel on the outside and brass (hub and bolt). |
| Product identification | |
| Manufacturer | Silvercloud |
| Product code | PNI-SCYE910 |
| Material | Stainless steel |
| General characteristics | |
| Yala type | Applied |
| Opening type from inside | Electrics / Mechanics |
| Supply voltage | 7 - 12V |
| Consumption | 50 - 60 W |
| Drive type | Fail Secure (Circuit NO / Normal Open) |
| Compatible with intercom and access control systems | Yes |
| Dimensions / Weight | 125 x 98 x 39 mm / 1137 g |
| Application mode | Left Right |
| Operating time | 0.5 s - 3 s at 12V |
| Retention system | Yes, mobile wheel type |
| Mechanical unlocking system | Yes |
| Lifetime | > 200,000 openings |
| Thickness recommended for the door | 35 - 50 mm |
| Working temperature | -26 ° C ~ + 60 ° C |
| Package Included | |
| Electromagnetic Yala | Yes |
| Opening hub | Yes |
| Opening keys | 5 pcs. |
| Clamping system | Yes |
| Mounting accessories | Yes |
