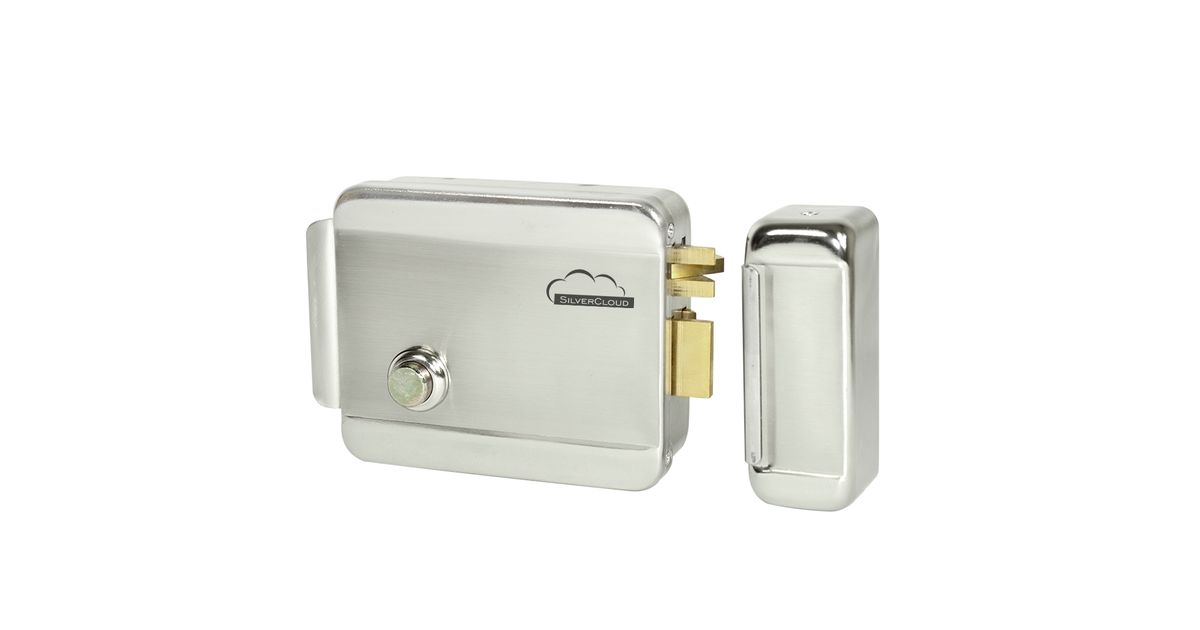

SilverCloud YL500 elektromagnetiline Yala jaoturiga, vasakpoolne ava, tõrge turvaline EI
Toote andmed
| Üldandmed | |
|---|---|
| Tootja | SilverCloud |
| Tootekood | 292317111 |
| EAN | 05949066501814 |
| Tootja kood | PNI-SCYL500 |
Toote kirjeldus
Fail-secure drive, normally open | |
In this configuration, the lock opens at 12V 1A 0.5 seconds electrical impulse provided by a NO circuit (and closes only after the door or gate has been opened and closed) or manually (the mechanical components ensure the opening from the inside even in the case of feathers. current). |
|
Open on the left side | |
| The electromagnetic Yala applicable SilverCloud YL500 can be mounted on doors with openings on the left side inwards. The recommended door thickness is between 35 and 50 mm. |
Compatible with intercom or access control systems | |
The SilverCloud YL500 electromagnetic Yala can be integrated into an access control or intercom system. The Unlock button on the internal unit of the video intercom in your home can activate the unlocking of the hall, thus allowing visitors access inside. |
|
| Product identification | |
| Manufacturer | Silvercloud |
| Product code | PNI-SCYL500 |
| Material | Satin nickel |
| General characteristics | |
| Yala type | Applied |
| Opening type from inside | Electric |
| Supply voltage | 7 - 12V |
| Consumption | 2 - 3.5 A at 12V |
| Drive type | Fail Secure (Circuit NO / Normal Open) |
| Compatible with intercom and access control systems | Yes |
| Dimensions / Weight | 125.5 x 101 x 39 mm / 1000 g |
| Application mode | Left |
| Operating time | 0.5 s - 3 s at 12V |
| Retention system | Yes, language / mobile puppy |
| Lifetime | > 200,000 openings |
| Thickness recommended for the door | 35 - 50 mm |
| Working temperature | -20 ° C ~ + 55 ° C |
| Package Included | |
| Electromagnetic Yala | Yes |
| Opening hub | Yes |
| Opening keys | 3 pcs. |
| Clamping system | Yes |
