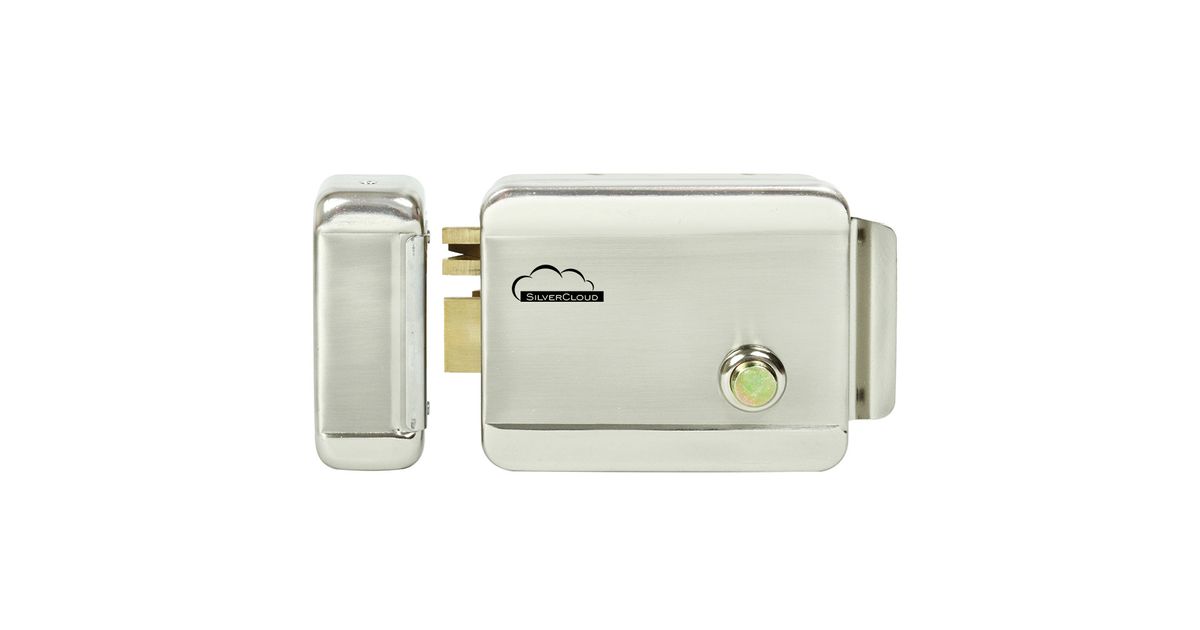

SilverCloud YR300 Elektromagnetiline Yala jaoturiga, paremal küljel, tõrge turvaline EI
Toote andmed
| Üldandmed | |
|---|---|
| Tootja | SilverCloud |
| Tootekood | 292317110 |
| EAN | 05949066501807 |
| Tootja kood | PNI-SCYR300 |
Toote kirjeldus
Fail-secure drive, normally open | |
In this configuration, the lock opens at 12 V 1A 0.5 seconds electrical impulse received from a NO circuit (and closes only after the door or door has been opened and closed) or manually (the mechanical components ensure the opening from the inside even in the case of current fuses). |
|
Opening on the right side | |
| The electromagnetic yala applicable SilverCloud YR300 can be mounted on doors with opening on the right side inwards. The recommended door thickness is between 35 and 50 mm. |
Compatible with intercom or access control systems | |
The SilverCloud YR300 electromagnetic Yala can be integrated into an access control or intercom system. The Unlock button on the internal unit of the video intercom in your home can activate the unlocking of the hall, thus allowing visitors access inside. |
|
| Product identification | |
| Manufacturer | Silvercloud |
| Product code | PNI-SCYR300 |
| Material | Satin nickel |
| General characteristics | |
| Yala type | Applied |
| Opening type from inside | Electrics / Mechanics |
| Supply voltage | 7 - 12V |
| Consumption | 2 - 3.5 A at 12V |
| Drive type | Fail Secure (Circuit NO / Normal Open) |
| Compatible with intercom and access control systems | Yes |
| Dimensions / Weight | 125.5 x 101 x 39 mm / 1005 g |
| Application mode | Right |
| Operating time | 0.5 s - 3 s at 12V |
| Retention system | Yes, language / mobile puppy |
| Lifetime | > 200,000 openings |
| Thickness recommended for the door | 35 - 50 mm |
| Working temperature | -26 ° C ~ + 60 ° C |
| Package Included | |
| Electromagnetic Yala | Yes |
| Opening hub | Yes |
| Opening keys | 3 pcs. |
| Clamping system | Yes |
