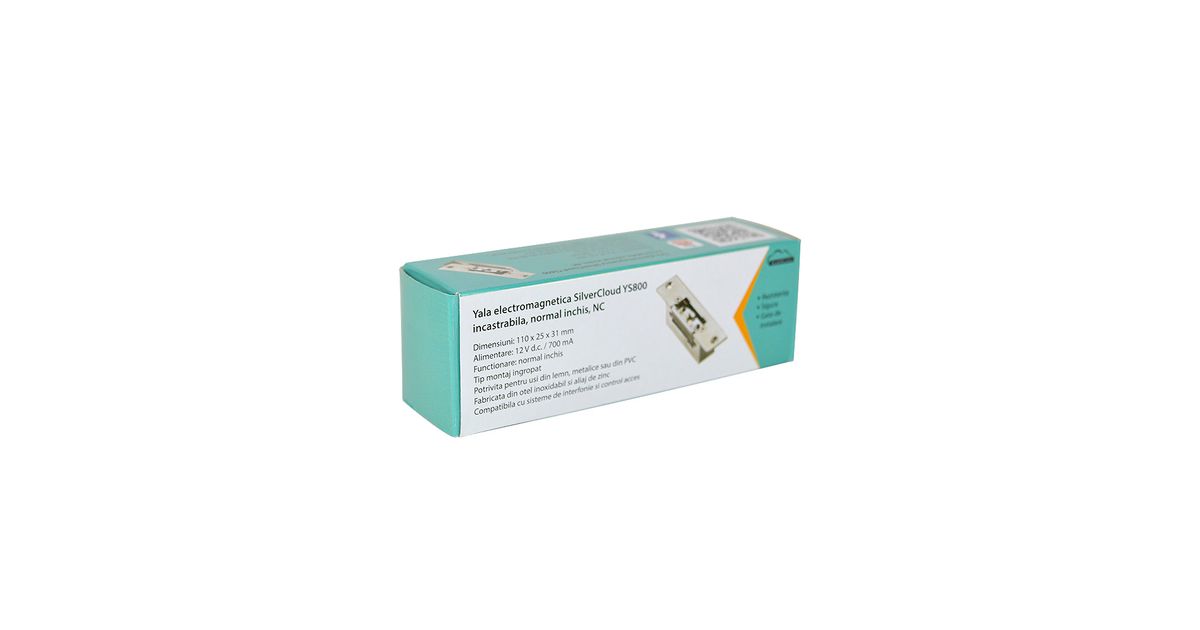

SilverCloud YS800 elektromagnetiline Yala laetav, Fail Secure EI
Toote andmed
| Üldandmed | |
|---|---|
| Tootja | SilverCloud |
| Tootekood | 292317113 |
| EAN | 05949066501852 |
| Tootja kood | PNI-SCYS800 |
Toote kirjeldus
Fail-secure drive, normally open (NO) | |
The Yala can be controlled by a NO circuit (Normally open) that offers a voltage of 12 V either pulse type (if the retention function is applied) or timed (maximum 5 seconds). |
|
Universal opening | |
| The SilverCloud YS800 recessed electromagnetic yala can be mounted on any door, wood, metal or PVC, regardless of its opening direction: inwards or outwards, to the left or to the right. |
Compatible with intercom or access control systems | |
The SilverCloud YS800 electromagnetic Yala can be integrated into an access control or intercom system. The Unlock button on the internal unit of the video intercom in your home can activate the unlocking of the hall, thus allowing visitors access inside. |
|
Stainless steel | |
| The electromagnetic Yala YS800 is made of durable materials: stainless steel on the outside and zinc alloy on the inside, with a closing force of 250 kg. |
functions | |
The SilverCloud YS800 electromagnetic Yala is equipped with a central reinforcement pin (impulse retention function). The retention function is functional if the central retaining pin inside the yoke is pressed by the puppy / bolt of the door when the door is closed. This function allows the lock to be opened open, until the door / door / door is opened. Also, the yala can be locked on the open mode by positioning the dedicated pin on the open mode. |
|
| Product identification | |
| Manufacturer | Silvercloud |
| Product code | PNI-SCYS800 |
| Material | Stainless steel |
| General characteristics | |
| Yala type | bury |
| Supply voltage | 12 V pulse type |
| Consumption | 1.2A |
| Drive type | Fail Secure (Circuit NO / Normal Open) |
| Compatible with intercom and access control systems | Yes |
| Closing force | 250 kg |
| Dimensions / Weight | 110 x 25 x 31 mm / 214 g Body: 75 x 20 mm |
| Application mode | Left Right |
| Operating time | 0.3s - 4s at 12V |
| Retention system | Yes, mobile central mechanical pine |
| Mechanical unlocking system | Yes |
| Working temperature | -26 ° C ~ + 60 ° C |
| Package Included | |
| Electromagnetic Yala | Yes |
