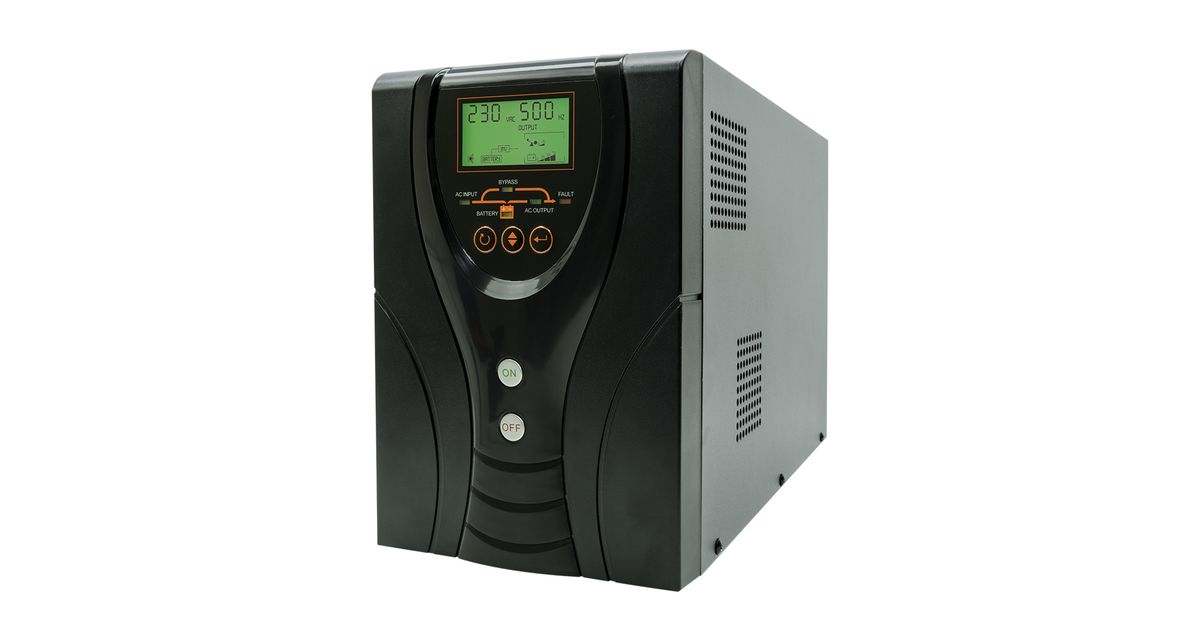

Soojaelektrijaamade jaoks puhta sinusoidaalse LCD-ekraaniga SilverCloud 850VA UPS
Toote andmed
| Üldandmed | |
|---|---|
| Tootja | SilverCloud |
| Tootekood | 292317578 |
| EAN | 05949066511806 |
| Tootja kood | PNI-SCP850 |
Toote kirjeldus
| |
| UPS - Uninterruptible power supply Sinusoid pure for thermal power plantsThe SilverCloud SafePC 600W UPS is the ideal solution for protecting wood-fired power plants, engine equipment, and other electronics that are susceptible to short-time and long-term power outages. The device operates with an input voltage of 140 ~ 280VAC +/- 2% providing a constant output of 230 V +/- 10%. |
Overload and short-circuit protectionThe Silver Cloud SafePC 600W is equipped with a smart protection system in the event of overloading, overloading, or shorting, and with a fuse that protects the electronic equipment from possible damage after a short circuit. |
|
| AVR - Output Voltage StabilizationThe device also has a voltage stabilizer on the output, a function that offers the most accurate voltage and close to that required for powering the electrical and electronic equipment in your home. |
USB-PC communication / monitoringThe SilverCloud SafePC 600W UPS is equipped with an intelligent monitoring / control and diagnostics function and technical parameters that can be tracked from a PC / Laptop via the USB Connection and USB cable available in the package. Once connected to a PC / Laptop with Internet access, you can track the remote UPS's operating parameters via the Internet with applications such as TeamViewer. | |
| Autonomy: External battery / batteryThe device allows you to connect a car battery or as recommended by a GEL VRLA AGM large capacity (50 - 200Ah) battery that does not require maintenance and has a long service life. This provides a backup time of up to several hours in case of power failure, the duration varies depending on the instantaneous consumption. The device automatically charges the battery when it stops running. |
LCD screen and smart menuThe UPS will alert you both visually and visually in the event of a low battery level, when switching to battery power or overcharging. The LCD screen will allow you to monitor the device's operating status, battery level and warnings. | |
| Available connectionsThe SafePC 600W UPS has 2 Schuko outputs for powering 230V electronic devices, a fixed line line in / out, and a PC / Laptop system monitor / diagnostics USB connector. |
| entry | |
| tension | 140 ~ 280VAC +/- 2% |
| Frequency | 45-65 Hz |
| AC Auto Restart | Yes |
| Low / high frequency alert | Yes |
| output | |
| tension | Inverter: 230VAC (+/- 2% RMS), AVR: 195VAC-245VAC |
| Frequency | 50Hz / 60Hz +/- 0.2Hz |
| Wave type | Sinusoida pure |
| Inverter efficiency (max) | > 75% |
| Efficiency bypass | > 95% |
| Transfer time | Typical: 6ms 10ms (max) |
| Battery | |
| Type | With lead acid |
| Capacity | 30A - 200A |
| General characteristics | |
| Smart display / screen | Yes |
| Smart multifunction menu | Yes |
| Power | 850 VA / 600 W |
| Output voltage stabilization | Yes: 195VAC-245VAC |
| Protection | Overcharging / poor battery / short-circuit / overheating |
| Overload protection | 110% ~ 125% R load - 30S protection; 125% ~ 150% R load - 3S protection; > 150% R load - 500MS protection; |
| Temperature of use | 0 ~ 40 ° C |
| Humidity | 10% ~ 90% RH without condensation |
| Alarm sound level | ≤ 60 dB |
| Dimensions / weight | 315 x 145 x 210 mm |
| Communication interface | USB |
| PC monitoring software | Yes |
| Fixed line telephone line protection | Yes |
| Cable length | 1.2 m |
| Compatible battery / battery voltage | 12 V |
| Battery low / overloaded alert | Yes |
| Low / overloaded battery self-connection | Yes |
| Battery connection cables | Yes, red and black, 80 cm each |
| VAC output connectors | 2 x schuko socket |
| The package contains | |
| UPS unit | Yes |
| Power cord | Yes |
| User manual | Yes |
| CD software | Yes |
| Monitoring cable | Yes: USB |
| Car battery connectors | Yes |
