Tootepildid on illustratiivsed

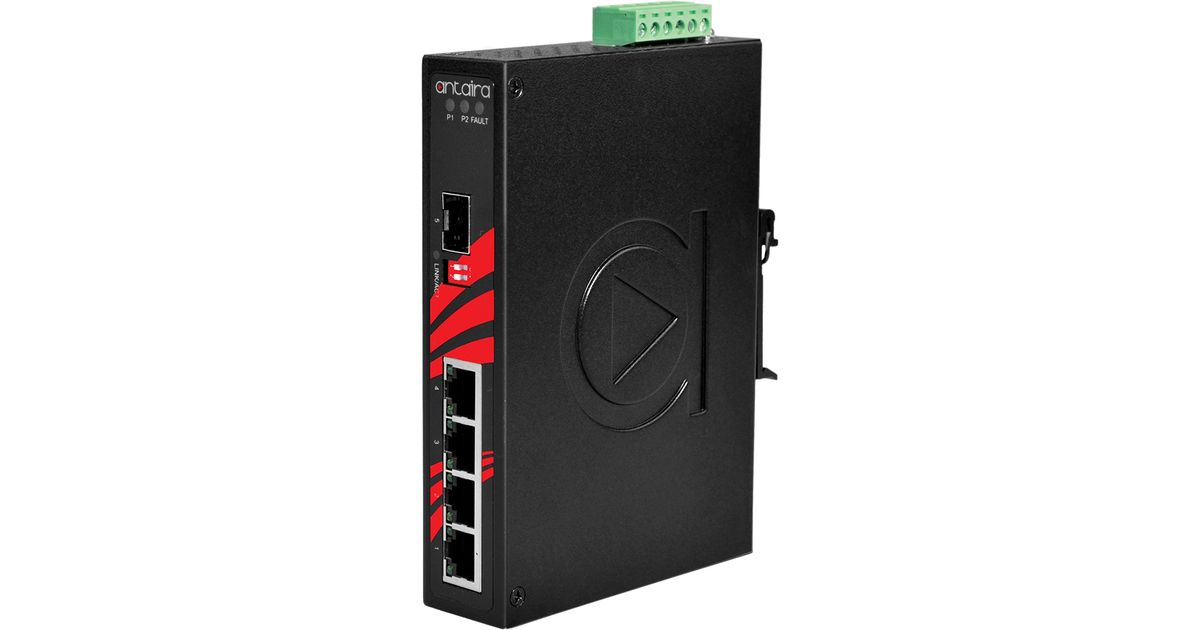

Switch: 4 X 10/100/1000Baset(X), 1 X Sfp, -10 Kuni 70°C, Mittemanageeritav, Din
Toote andmed
| Üldandmed | |
|---|---|
| Tootja | ANTAIRA |
| Tootekood | 827938232 |
| EAN | 02000000467481 |
| Tootja kood | LNX-0501G-SFP |
Toote kirjeldus
Antaira’s LNX-0501G-SFP industrial gigabit unmanaged Ethernet switch series are IP30 rated and DIN-Rail mountable. Each unit is designed with four gigabit Ethernet ports and one dual rate (100/1000) SFP slot, making it ideal for applications that demand high bandwidth and long distance communication. The LNX-0501G-SFP series provides high EFT and ESD protection to prevent any unregulated voltage and is suitable for harsh environments. It supports the power redundancy feature using a dual power input design with reverse polarity protection.
In addition, the built-in relay warning function alerts maintainers when power failures or port breaks occur, plus the built-in advanced broadcast storm protection feature will block any data packet that exceeds a defined limit when it arrives to a port, until the rate decreases to a lower threshold.
Features
- Network Broadcast Storm Protection
- 4*10/100/1000Tx Fast Ethernet Ports & 1*100/1000 SFP Slot
- Supports Auto MDI/MDI-X Function
- Store-and-Forward Switching Architecture
- 10Gbps Back-Plane (Switching Fabric)
- 8K MAC Address Table
- 9.6Kbytes Jumbo Frame Support
- Surge Protection: 3,000 VDC Support
- ESD Protection: 6,000 VDC Support
- UL Class I, Division 2 Certified
- Redundant Power Input Design – 12~48VDC
- Built-in 1 Relay Output for Port Break Alarm
- IP30 Rugged Aluminum Case Design
- DIN-Rail and Wall Mount Support
- Operating Temperature Range - STD: -10° to 70° C
- 5-Year Warranty
-
Included
- 1 x DC cable –18 AWG & DC Jack 5.5x2.1mm
- 1 x LNX-0501G-SFP
- 2 x Wall Mounting Bracket and Screws
