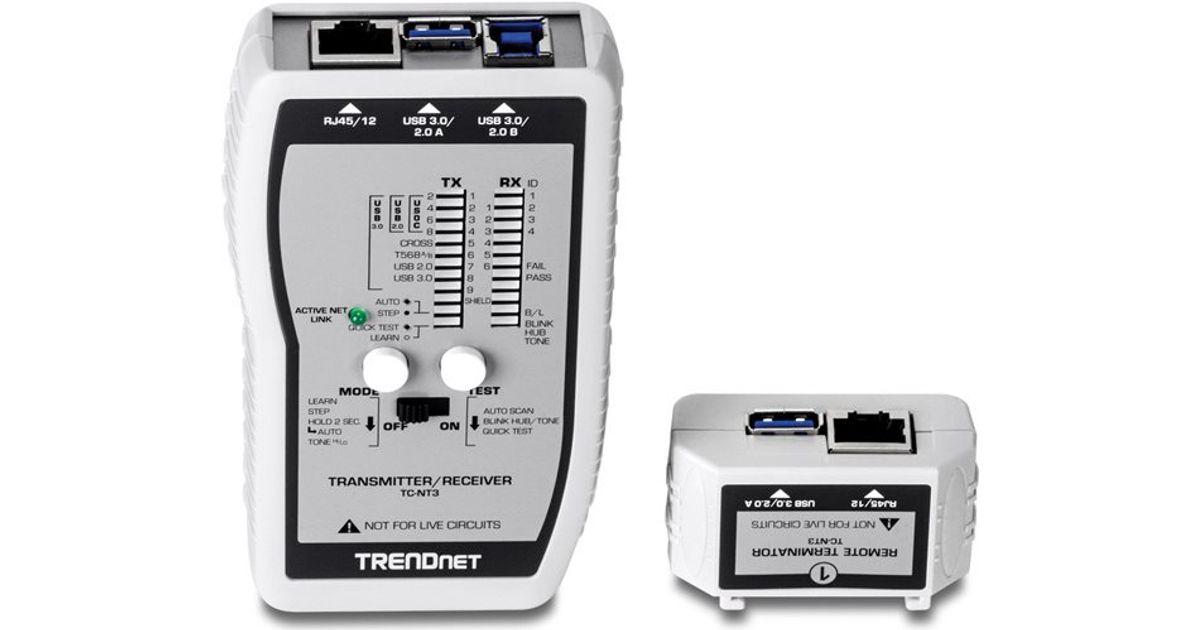

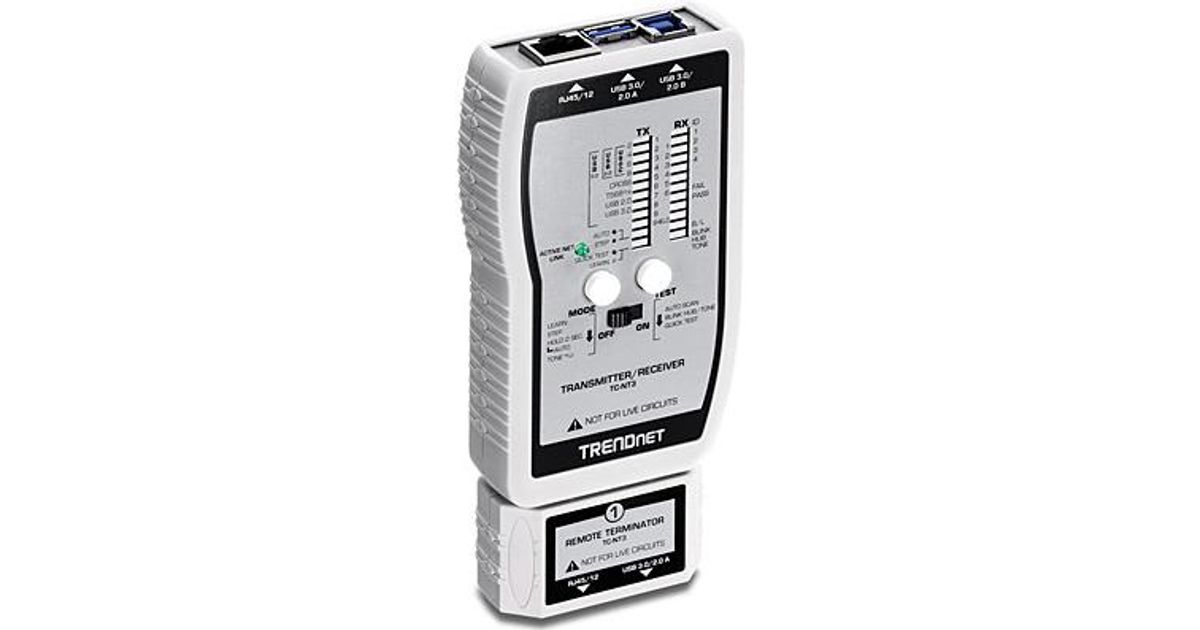

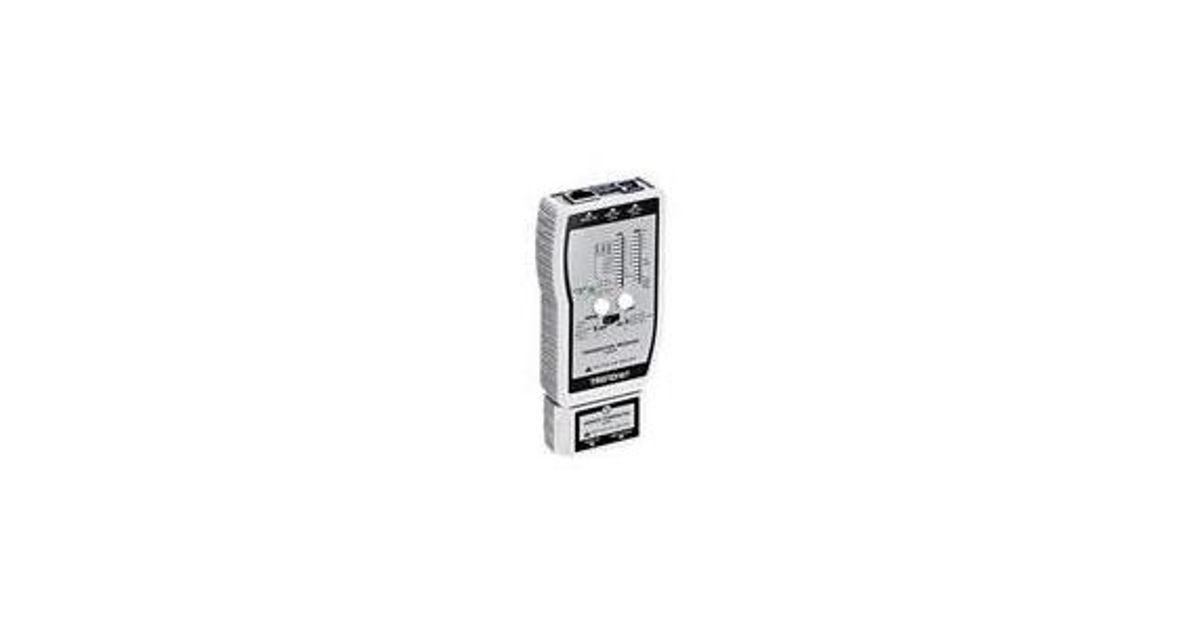

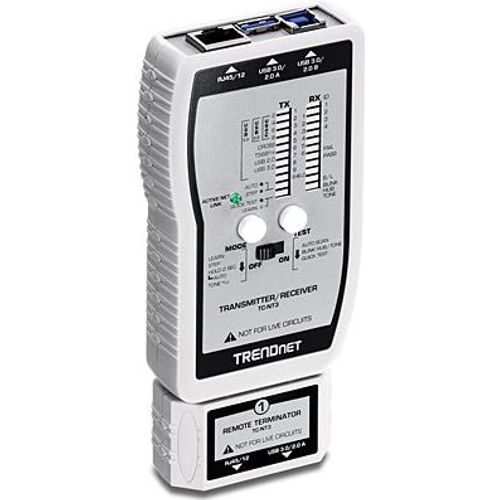

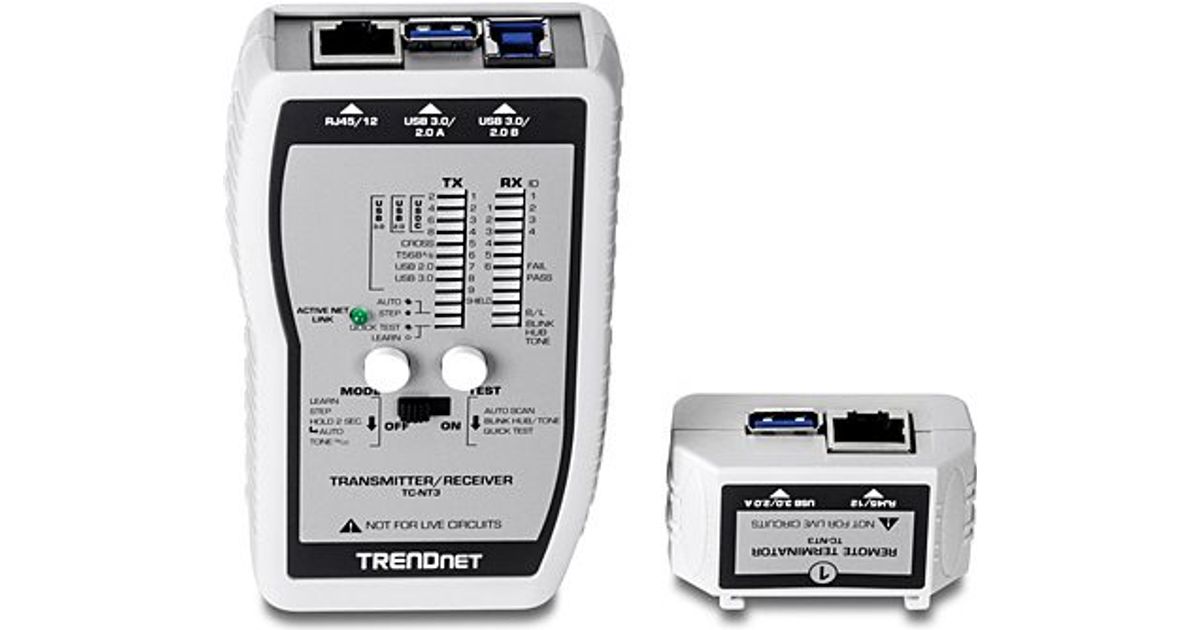

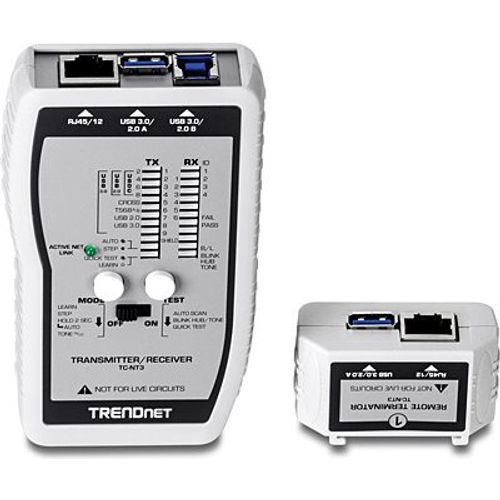

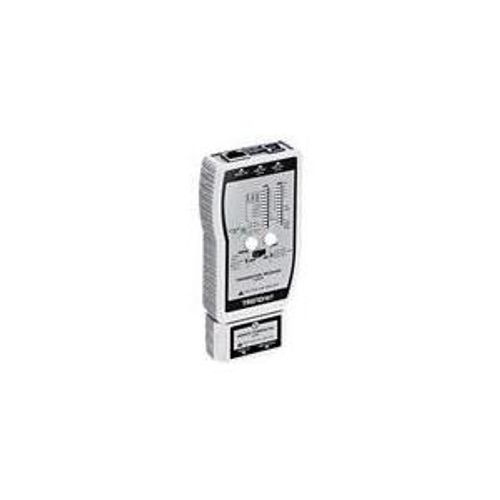

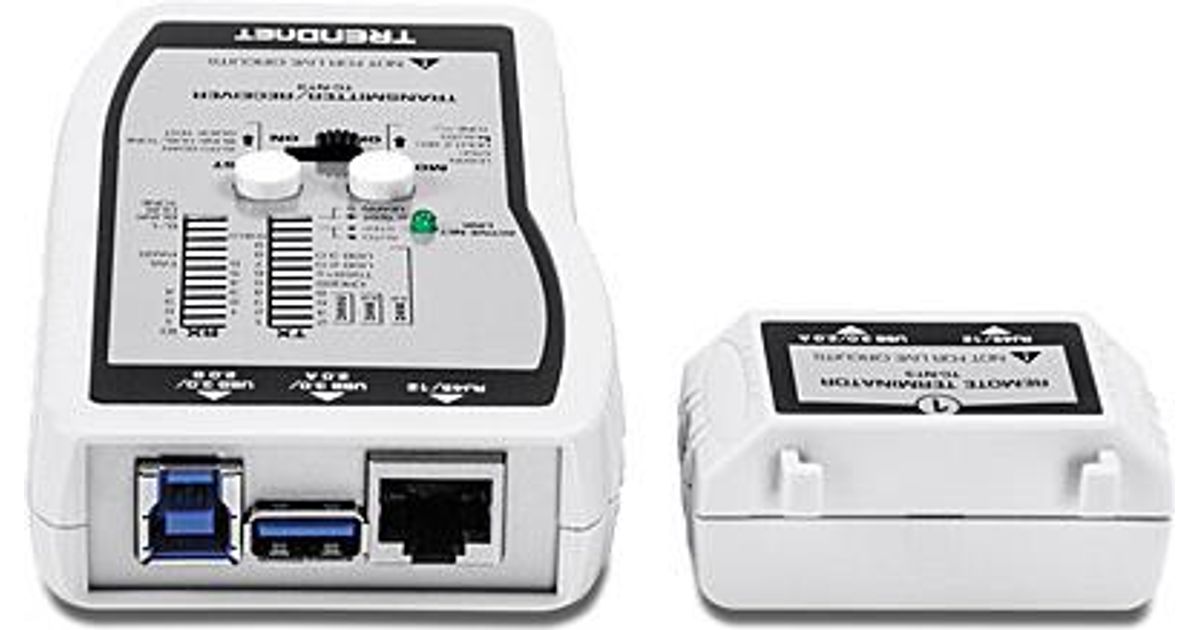

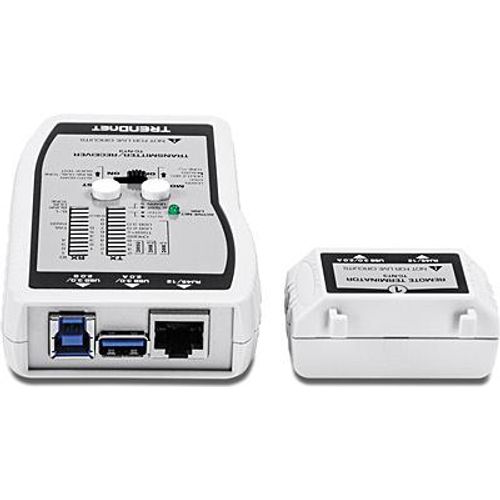

Trendnet TC-NT3 võrgukaabli tester Hõbe
Trendnet TC-NT3, 9 V, 144 g, 117 x 67 x 27 mm, 0 - 50 °C, LAN (RJ-45)
Loe rohkem...
Loe rohkem...
Toote andmed
| Üldandmed | |
|---|---|
| Tootja | Trendnet |
| Tootekood | 16734650 |
| EAN | 07426800976933 |
| Tootja kood | TC-NT3 |
Toote kirjeldus
VDV & USB Cable Tester
TC-NT3 (Version v1.0R)
- Comprehensive cable tester for network professionals
- Tests voice, data, video, and USB cables
- Accurately test pin configurations for cable lengths up to 300 meters (1,000 ft.)
- Identifies severed, short circuit, and cross connected pins
- Quick pass/fail for large test quantities
- Blinking Hub/Switch Mode identifies connected hub/switch port

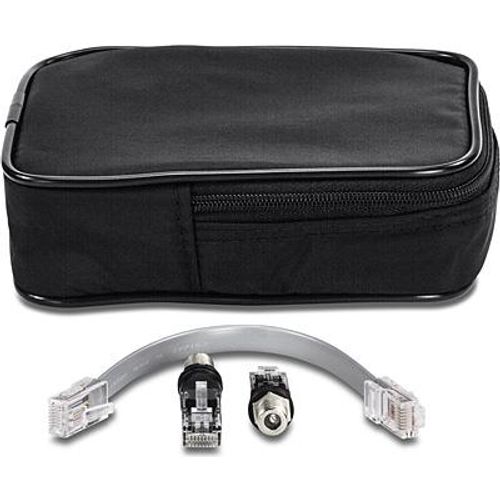

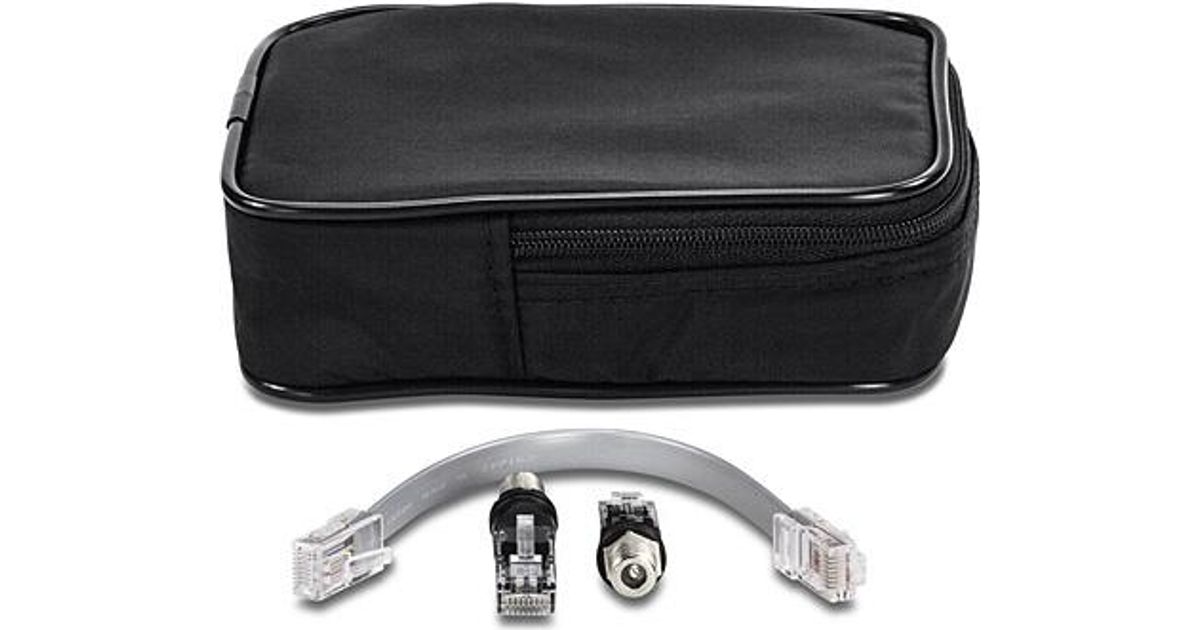

- Convenient travel case
TRENDnet’s VDV & USB Cable Tester, model TC-NT3, is a comprehensive cable tester for network professionals. It accurately tests a variety of voice, data, video, and USB cables. The TC-NT3 identifies proper, severed, short circuit, and cross connected pins for cable distances of up to 300 meters (1,000 ft.). Quick Test mode issues a pass/fail for large test batches. All components fit into a convenient travel case.
| Hardware | |
 |
Cables and Ports Accurately check pin configurations for: T568A/B, CAT3-8, USOC (2, 4, 6, and 8) straight through and reverse, COAX and Alarm with includes RJ45 to F adapters, USB 3.0, and USB 2.0 cables |
 |
PIN Tests Identifies proper, severed, short circuit, and cross connected pins |
 |
TX/RX Troubleshooting Displays separate TX and RX results for more efficient troubleshooting |
 |

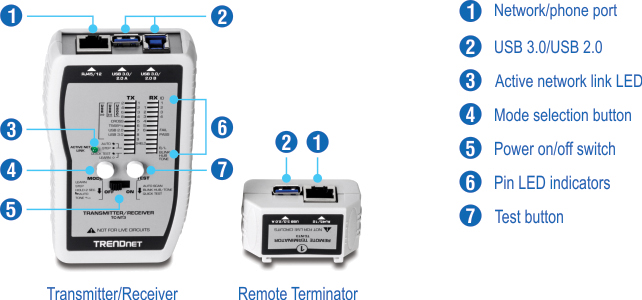

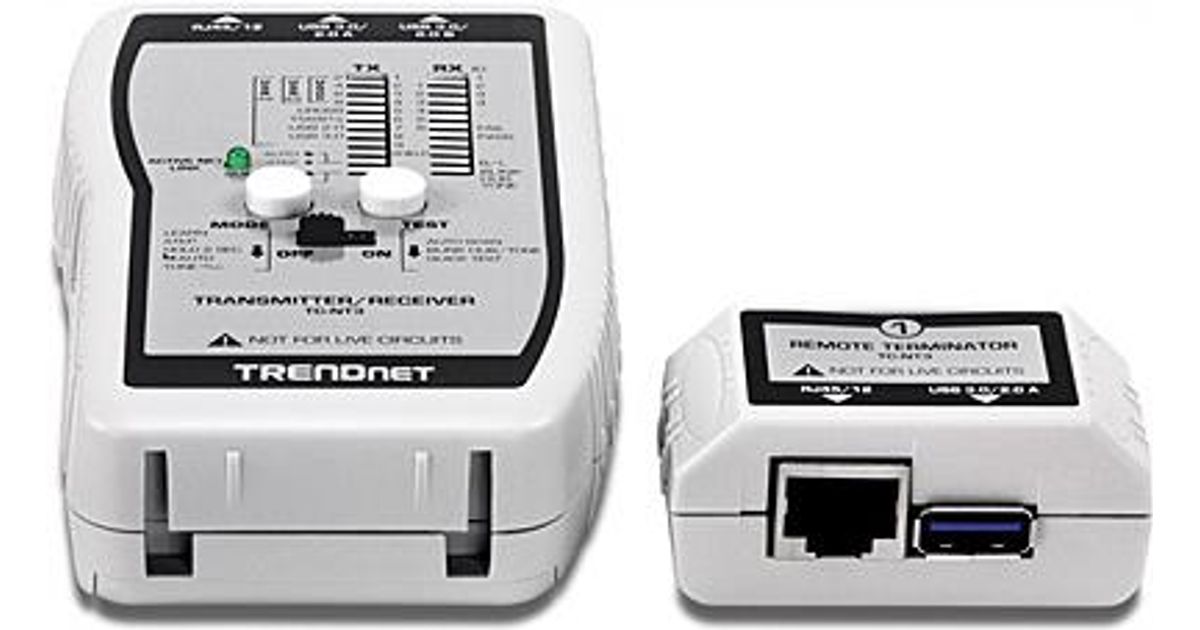

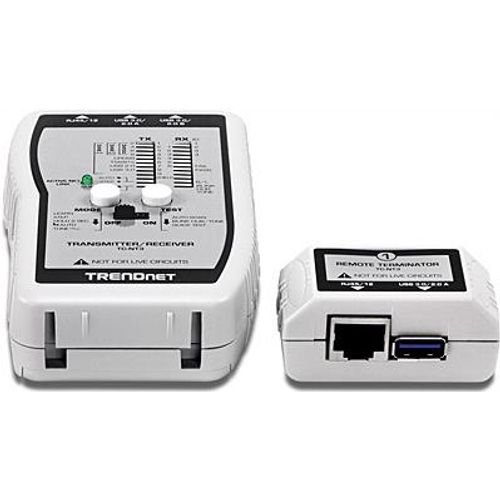

Local and Remote Testing A master unit facilitates loop testing and a detachable remote terminal unit allows for cable testing in locations away from the master unit |
 |
Continuous Scan Continuous scan mode is design to accommodate testing with cable ends in different locations |
 |
Manual Scan Manual scan is well suited for loop back cable testing |
 |
Quick Test Mode Designed to quickly test large cable quantities, Quick Test Mode identifies a given cable type and then immediately issues a Pass/Fail for the same cable type |
 |
Blinking Hub/Switch Mode Designed to confirm which port on a hub/switch a given cable is networked to, Blinking Hub/Switch Mode causes the connected network port’s LED indicator to blink |
 |
Cable Distance Tests cables lengths of up to 300 meters (1,000 ft.) |
 |
Tone Generator Compatible with TRENDnet’s TC-TP1, Network Probe, to trace cables using two selectable tones |
