Tootepildid on illustratiivsed

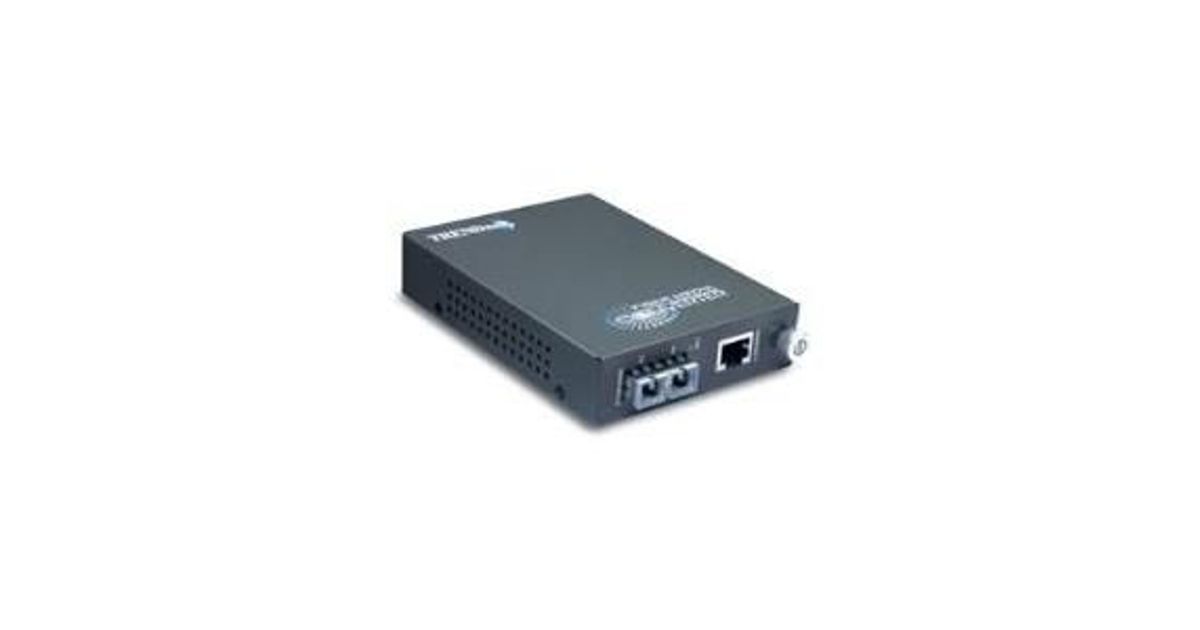

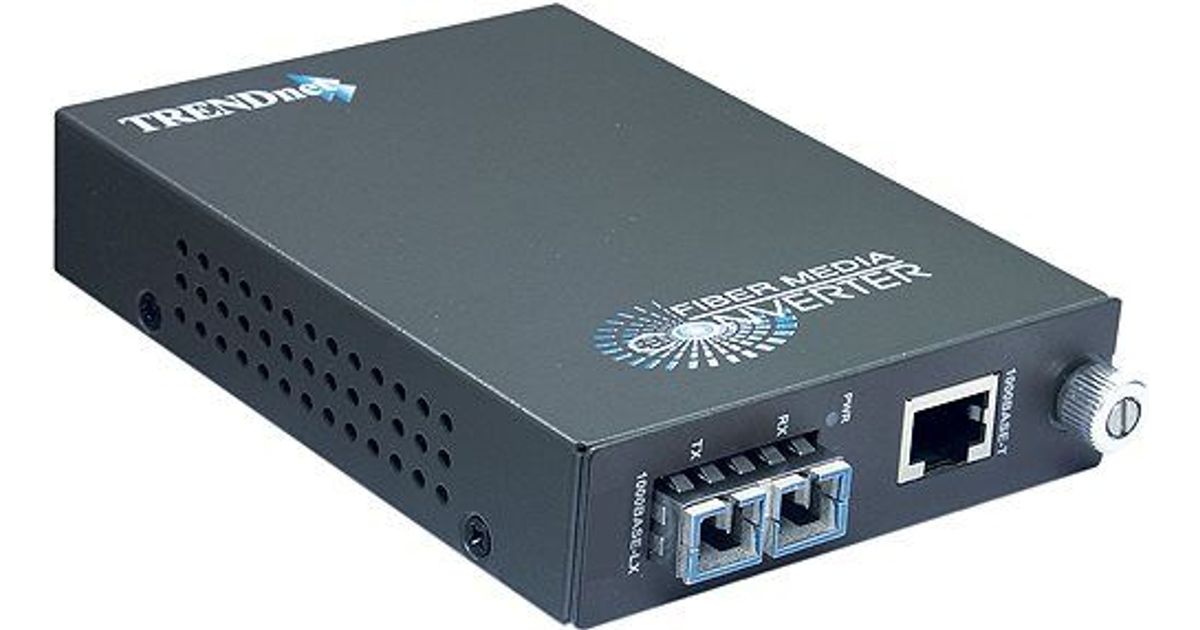

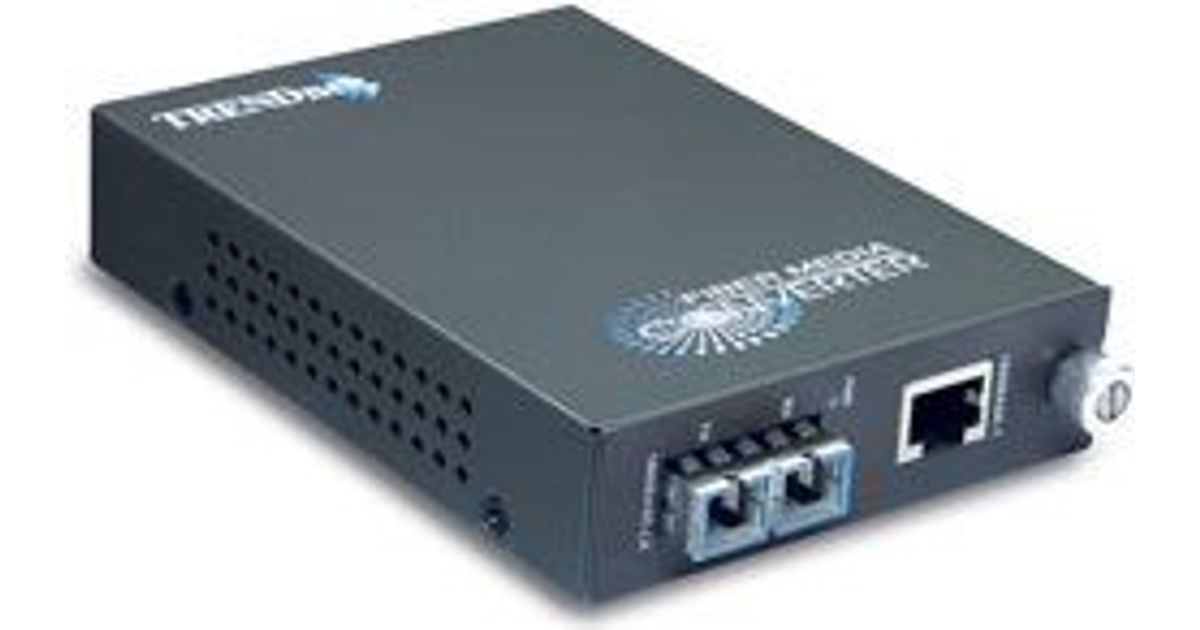

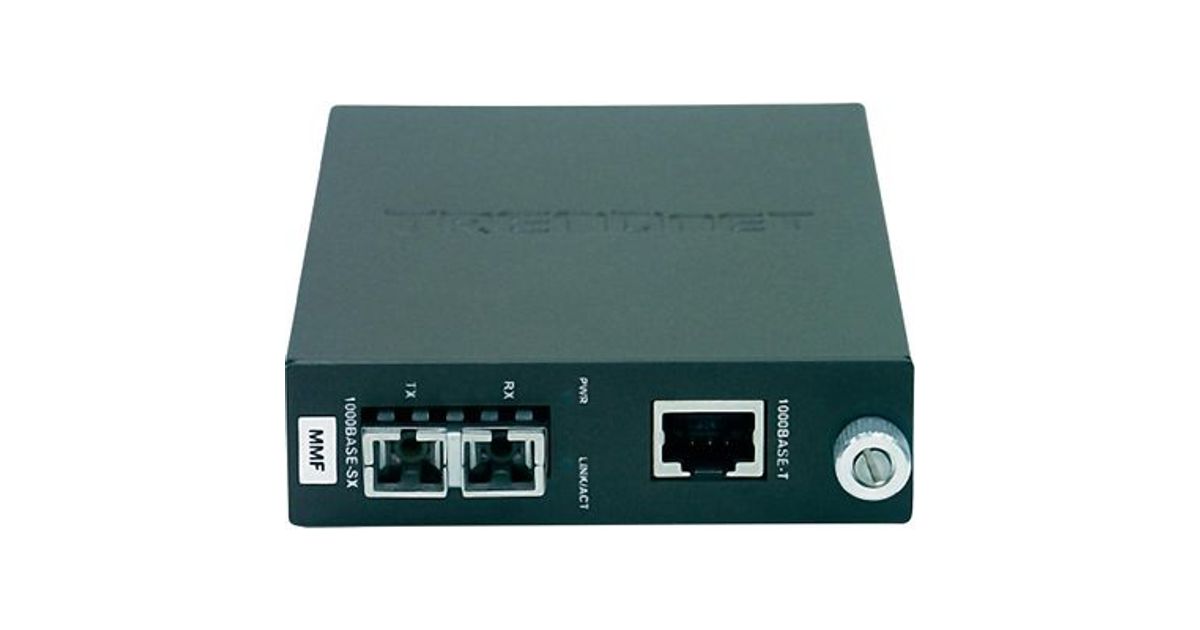

Trendnet TFC-1000MSC meediakonverter 2000 Mbit/s 1310 nm Multirežiim Hall
Trendnet TFC-1000MSC, 2000 Mbit/s, 1000Base-T, 1000Base-LX, IEEE 802.3ab,IEEE 802.3z, Gigabit Ethernet, 1000 Mbit/s
Loe rohkem...
Loe rohkem...
Toote andmed
| Üldandmed | |
|---|---|
| Tootja | Trendnet |
| Tootekood | 16488167 |
| EAN | 00710931981452 |
| Tootja kood | TFC-1000MSC |
Toote kirjeldus
The TFC-1000MSC Intelligent Fiber Converter works with the TFC-1600 chassis system or as a standalone unit. This converter is a Multi Mode SC-Type fiber converter that supports SNMP and spans distances up to 550m (1,800 ft.). Ports include 1 x 1000Base-T (RJ-45) port and 1 x 1000Base-SX (SC-Type) port.
- Compliant with IEEE 802.3ab 1000Base-T and IEEE 802.3z 1000Base-SX standards
- 1 x 1000Base-T RJ-45 port
- 1 x 1000Base-SX multi-mode SC type fiber port
- Provides Dip switch to set: Fiber (Forced/Auto-Negotiation), LLR (Enable/Disable)
- Support LLCF (Link Loss Carry Forward, Link Pass Through)
- Support LLR (link Loss Return) for Fiber port
- Monitor and configure Ethernet or Fiber’s duplex mode, LLR, and receive link down information via management module TFC-1600MM and chassis TFC-1600
- Status LED indicators for Power and Link/Activity
- Wall mountable
- Optional 19” system chassis with redundant power supply (TFC-1600), holds up to 16 TFC series Media Converters
- 3-year limited warranty
