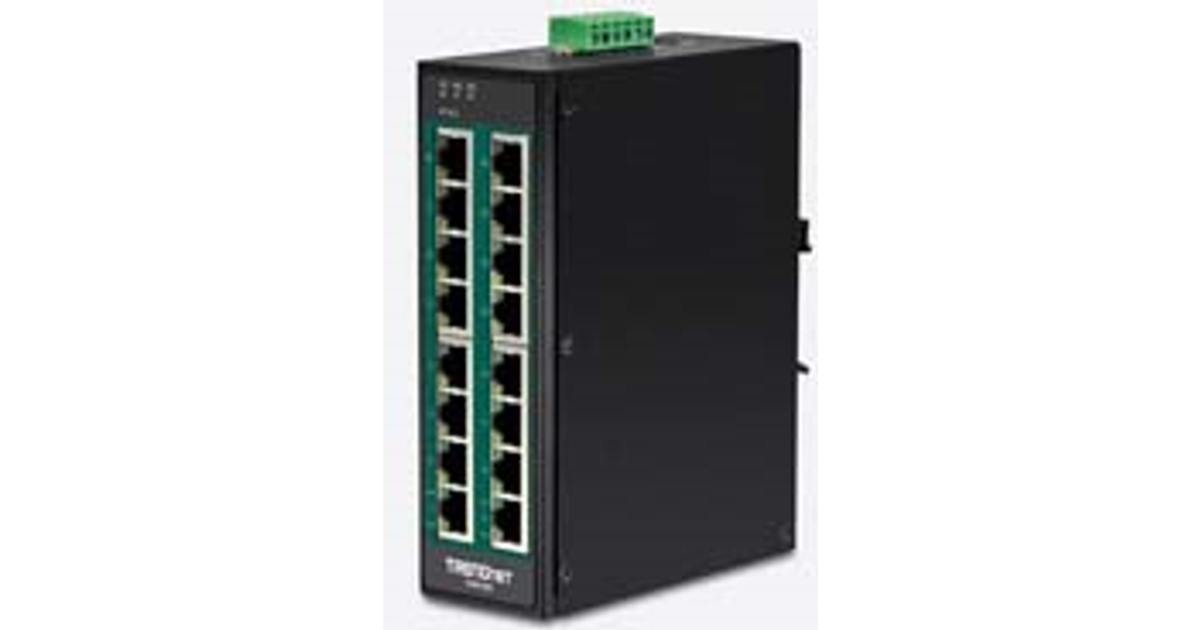

Trendnet TI-PG160 võrgulüliti Mittejuhitav Gigabit Ethernet (10/100/1000) Power over Ethernet tugi Must
Trendnet TI-PG160, Mittejuhitav, Gigabit Ethernet (10/100/1000), Täisdupleks, Power over Ethernet tugi, Seinale kinnitatav
Loe rohkem...
Loe rohkem...
Toote andmed
| Üldandmed | |
|---|---|
| Tootja | Trendnet |
| Tootekood | 16486690 |
| EAN | 00710931161618 |
| Tootja kood | TI-PG160 |
| Kategooria | Switchid ja lisad |
Toote kirjeldus
- 16 x Gigabit PoE+ ports
- 240W PoE power budget
- 32Gbps switching capacity
- Hardened IP30 rated metal switch
- Includes DIN-rail and wall mounts
- Operating temperature range of -40° – 75° C (-40° – 167° F)
- Redundant power inputs with overload current protection
- Alarm output triggered by power failure
- Power supply sold separately (models: TI-S24048, TI-S48048)
-
TRENDnet's 16-Port Industrial Gigabit PoE+ DIN-Rail Switch, model TI-PG160, has sixteen gigabit PoE+ ports with a 240W PoE power budget. Users are able to connect sixteen PoE+ devices to the industrial PoE switch, while still providing two gigabit ports for additional network connections. The industrial PoE switch is equipped with an IP30 rated metal enclosure, designed to withstand a high degree of vibration and shock, while operating within a wide temperature range of -40° – 75° C (-40° – 167° F) for industrial environments.
PoE Power
A 240W PoE+ power budget supplies up to sixteen Power over Ethernet devices with PoE+ power.
Fault Tolerance
The industrial PoE switch features redundant power inputs with output alarm relay.
Industrial Design
Equipped with a rugged IP30 rated housing, designed to withstand a high degree of vibration and shock, and operate within a wide temperature range of -40 – 75° C (-40 – 167° F).
PoE+ Power Budget
Supplies up to 30W of PoE/PoE+ power per port on the industrial PoE switch with a 240W PoE power budget
Network Ports
Industrial PoE switch with 16 Gigabit PoE+ ports
DIN-Rail/Wall Mounts
IP30 rated metal enclosure with included DIN-rail and wall mount hardware
Switching Capacity
32Gbps switching capacity
Redundant Power
Redundant power inputs with overload current protection (power supply sold separately models: TI-S24048 / TI-S48048)
Alarm Relay
Alarm relay triggered by power failure of primary and/or redundant power
Jumbo Frame
Sends larger packets, or Jumbo Frames (up to 9KB), for increased performance
Extreme Temperatures
Industrial PoE switch rated for an operating temperature range of -40 – 75° C (-40 – 167° F)
Shock and Vibration Resistant
Rated for shock (EN 60068-2-27), freefall (EN 60068-2-32), and vibration (EN 60068-2-6)
Grounding Point
Grounding point on the industrial PoE switch protects equipment from external electrical surges
