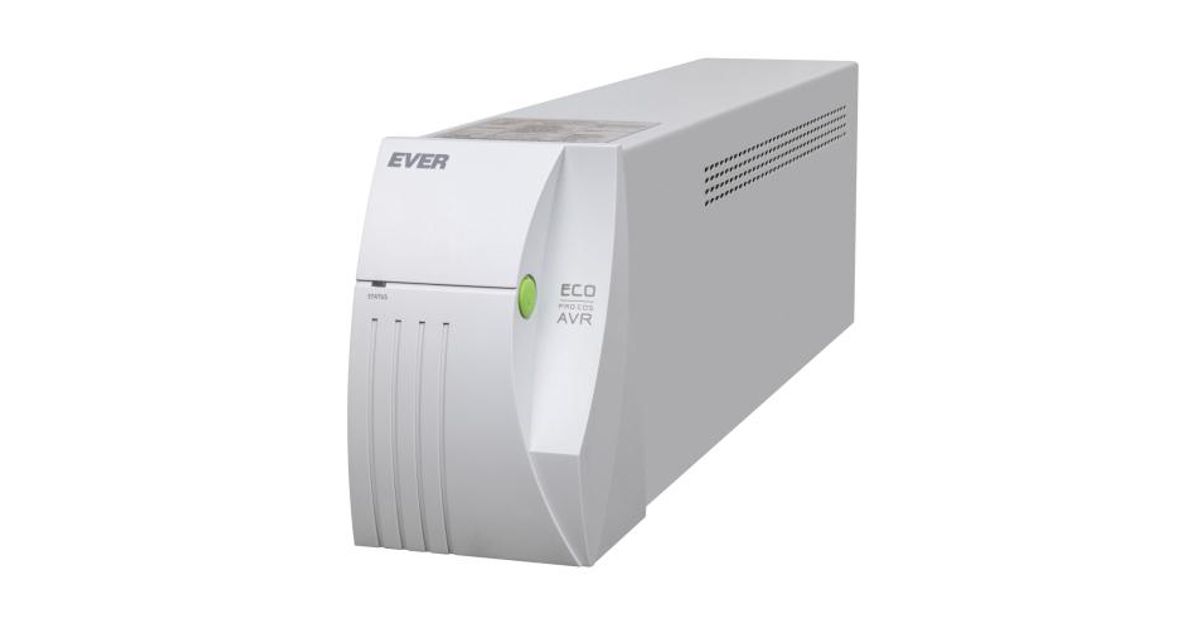

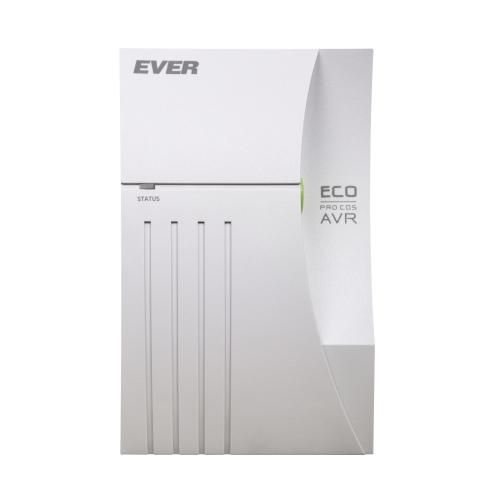

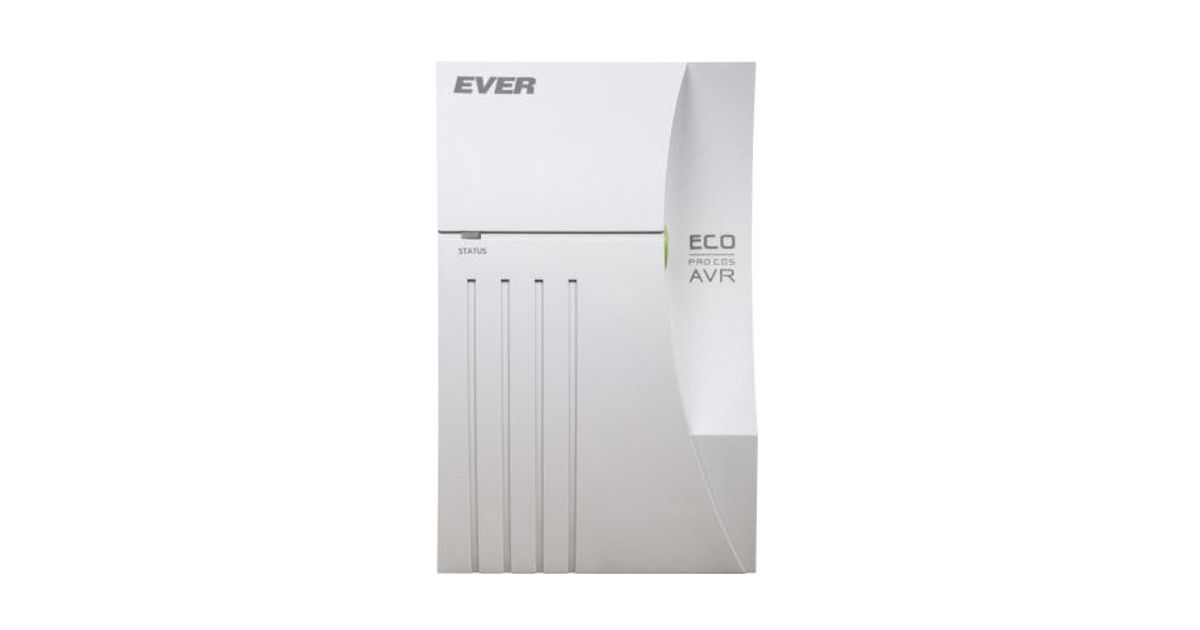

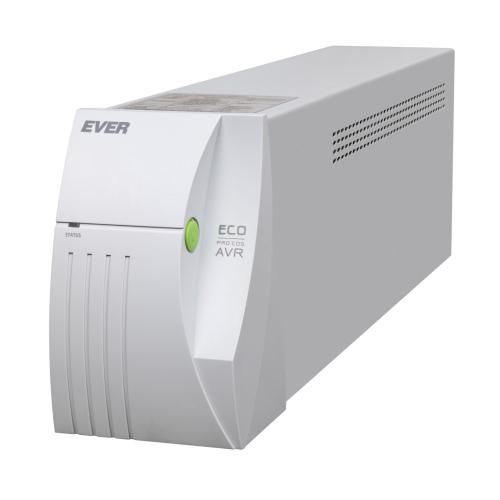

UPS EVER ECO Pro 1200 AVR CDS
Toote andmed
| Üldandmed | |
|---|---|
| Tootja | Ever |
| Tootekood | 03128170 |
| EAN | 05907683604905 |
| Tootja kood | AUEVEL2TEVAVR12 |
| Kategooria | UPS seadmed |
| Muud andmed | |
|---|---|
| UPS topology | Line-Interactive |
| USB port type | USB Type-B |
| Waveform | Sine |
| Automatic Voltage Regulation (AVR) | Y |
| Output frequency | 50 Hz |
| Storage relative humidity (H-H) | 20 - 95% |
| Weight | 10.2 kg |
| Package height | 185 mm |
| Audible alarm(s) | Y |
| Battery capacity | 5 Ah |
| Operating relative humidity (H-H) | 20 - 80% |
| Input Frequency | 50 Hz |
| Operating temperature (T-T) | 0 - 40 °C |
| Input operation voltage (min) | 168 V |
| Storage temperature (T-T) | 0 - 40 °C |
| Number of output phases | 1 |
| Input operation voltage (max) | 264 V |
| Width | 90 mm |
| Number of batteries supported | 2 |
| Number of input phases | 1 |
| Output operation voltage (min) | 184 V |
| Battery Technology | Sealed Lead Acid (VRLA) |
| Output power capacity | 1200 VA |
| AC outlets quantity | 2 AC outlet(s) |
| Output operation voltage (max) | 264 V |
| Cold start | Y |
| Power protection features | Overload |
| Package depth | 485 mm |
| Audible alarm modes | Overload alarm |
| Package width | 130 mm |
| Output power | 780 W |
| Depth | 434 mm |
| International Protection (IP) code | IP20 |
| Battery voltage | 12 V |
| Product colour | White |
| USB port | Y |
| Surge protection | Y |
| Package weight | 10.7 kg |
| Height | 150 mm |
Toote kirjeldus
| Original part number | W/EAVRTO-001K20/00 |
| Product name | UPS EVER ECO Pro 1200 AVR CDS |
| Producer | Ever |
| Class of product | UPS |
| Apparent power | 1200 VA |
| Real power | 780 Watt |
| UPS architecture | line-interactive |
| Max. time of switching on battery | 3 ms |
| Number and type of outlets with power maintenance | 2 x PL (10A) |
| Input connector type | Cable with PL plug (10A) |
| Sustain time with full load | 3 min |
| Sustain time with 50% load | 7 min |
| Input voltage range for main operations | 168-264 V |
| Cold start | Yes |
| (AVR) Automatic Voltage Regulation | Yes |
| Sine while working on battery | Yes |
| Communication ports | USB HID |
| Data line surge protection port | N/A |
| LED |
|
| Sound alarm |
|
| Type of computer case | Tower |
| Standard accessory |
|
| Software included | PowerSoft - to free download from ever.eu |
| Additional information |
|
| Width | 90 mm |
| Height | 150 mm |
| Depth | 434 mm |
| Net weight | 10.25 kg |
| Gross weight | 10.7 kg |
| Colour | White |
| Datasheet | Specification [LINK] |
