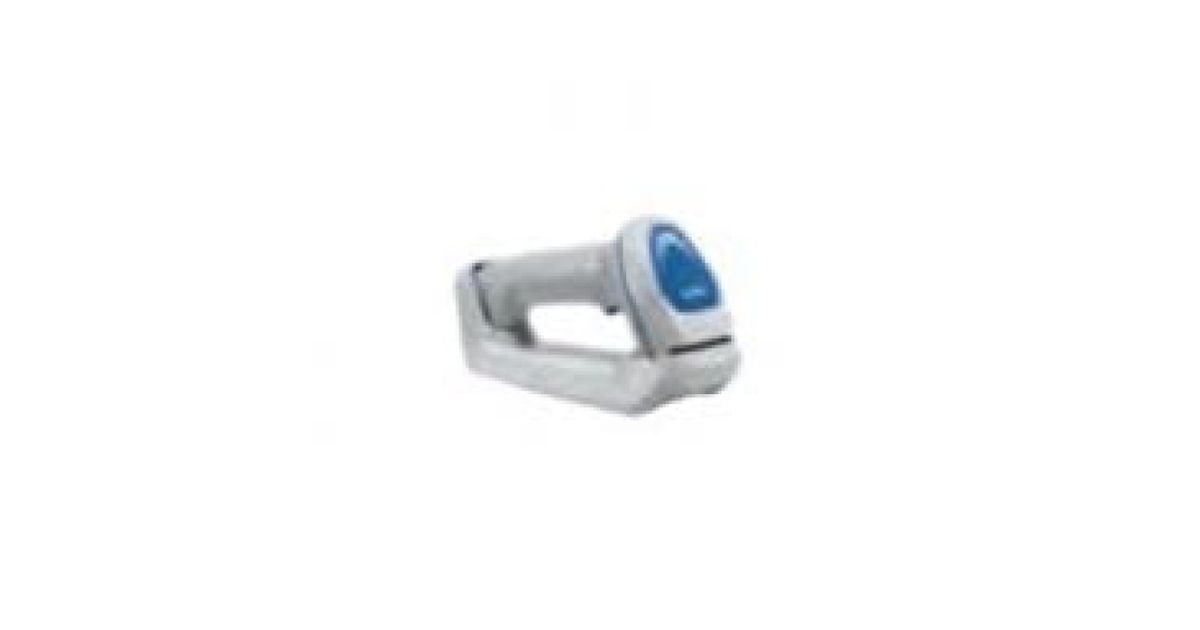

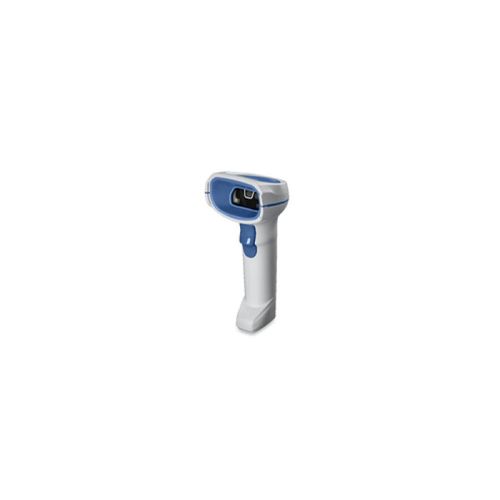

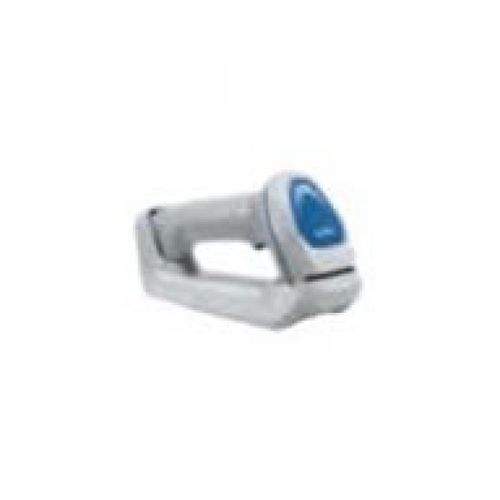

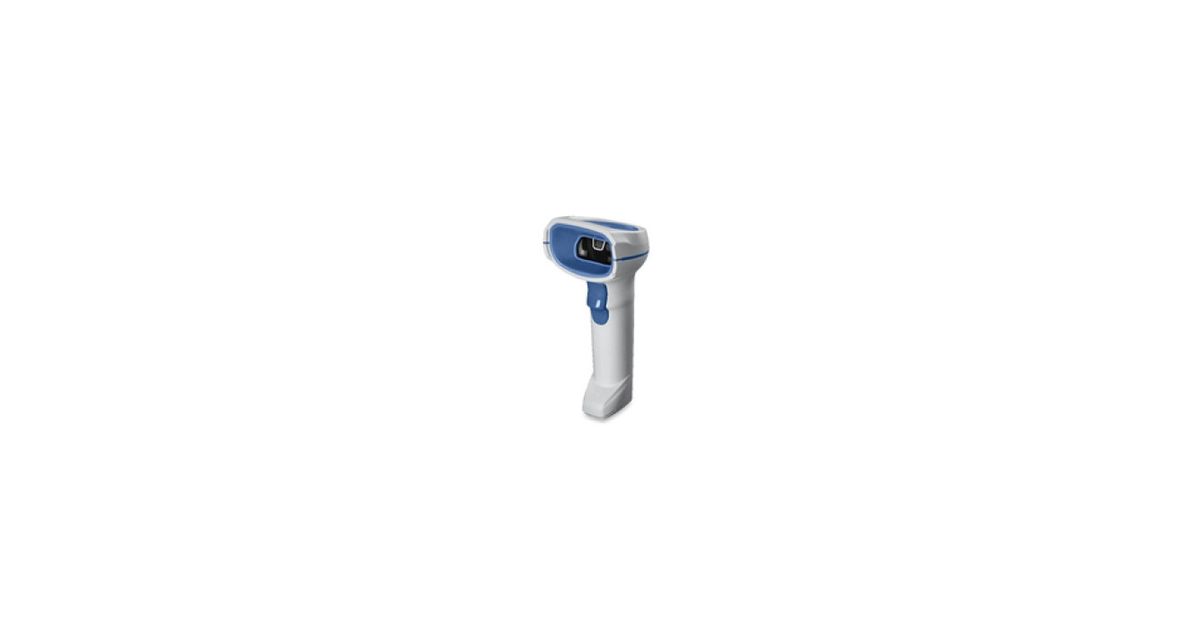

Zebra DS8178-HC Handheld bar code reader 1D/2D LED White
Toote andmed
| Üldandmed | |
|---|---|
| Tootja | Zebra |
| Tootekood | 6811995906 |
| EAN | 00843715105260 |
| Tootja kood | DS8178-HCBU210MS5W |
| Kategooria | Triipkoodilugejad |
Toote kirjeldus
Scanning
| Type | Handheld bar code reader |
|---|---|
| Scanner type | 1D/2D |
| Sensor type | LED |
| Linear (1D) barcodes supported | Codabar, Code 11, Code 128, Code 39, Code 93, GS1 DataBar Expanded, Interleaved 2 of 5, MSI, Plessey, U.P.C. |
| 2D (matrix & stacked) barcodes supported | Aztec Code, Composite Codes, Data Matrix, Han Xin, MaxiCode, Micro QR Code, MicroPDF417, PDF417, QR Code, TLC-39 |
| Wavelength | 528 nm |
| Tilt reading angle | 0 - 360° |
| Pitch reading angle | -60 - 60° |
| Yaw reading angle | -60 - 60° |
Ports & interfaces
| Connectivity technology | Wireless |
|---|---|
| Standard interfaces | Bluetooth, USB |
| Wireless range | 100 m |
| Bluetooth version | 4.0 |
| Bluetooth Low Energy (BLE) |
Performance
| Colour | White |
|---|---|
| International Protection (IP) code | IP42 |
Power
| Power source type | Battery |
|---|---|
| Battery technology | Lithium-Ion (Li-Ion) |
| Battery type | Built-in battery |
| Number of batteries supported | 1 |
| Battery capacity | 2500 mAh |
| Number of reads per charge | 65000 |
| Battery life | 83 h |
| Input voltage | 5 V |
Weight & dimensions
| Weight | 235 g |
|---|---|
| Width | 66 mm |
| Depth | 107 mm |
| Height | 168 mm |
Operational conditions
| Operating temperature (T-T) | 0 - 50 °C |
|---|---|
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 5 - 95% |
Logistics data
| Harmonized System (HS) code | 84716070 |
|---|
